Lisheng R1000
The Lisheng R1000 is a professional multi-protocol digital repeater designed to extend radio communication coverage and improve communication reliability. Supporting DMR, NXDN and analogue, it suits both existing conventional radio systems and future digital upgrades.
Functions
Built into the radio.
- 01Built-in Trunking Controller (optional)
- 02Intelligent IP Controller (optional)
- 03Built-in Power, Easy DC Switch
- 04Dual Mode: Digital/Analog
- 05Outstanding Heat Dissipation (2 cooling fans)
- 06Multiple Protocols: DMR/NXDN
- 07Accurate Display and User-friendly Operation
- 08Ultra-slim Design, Easy to Install and Carry
Built for professional communication.
Extend dependable radio coverage for public safety operations.
Keep transportation and logistics teams connected across large sites.
Support clear communication in construction and industrial environments.
Strengthen secure, reliable communications for security teams.

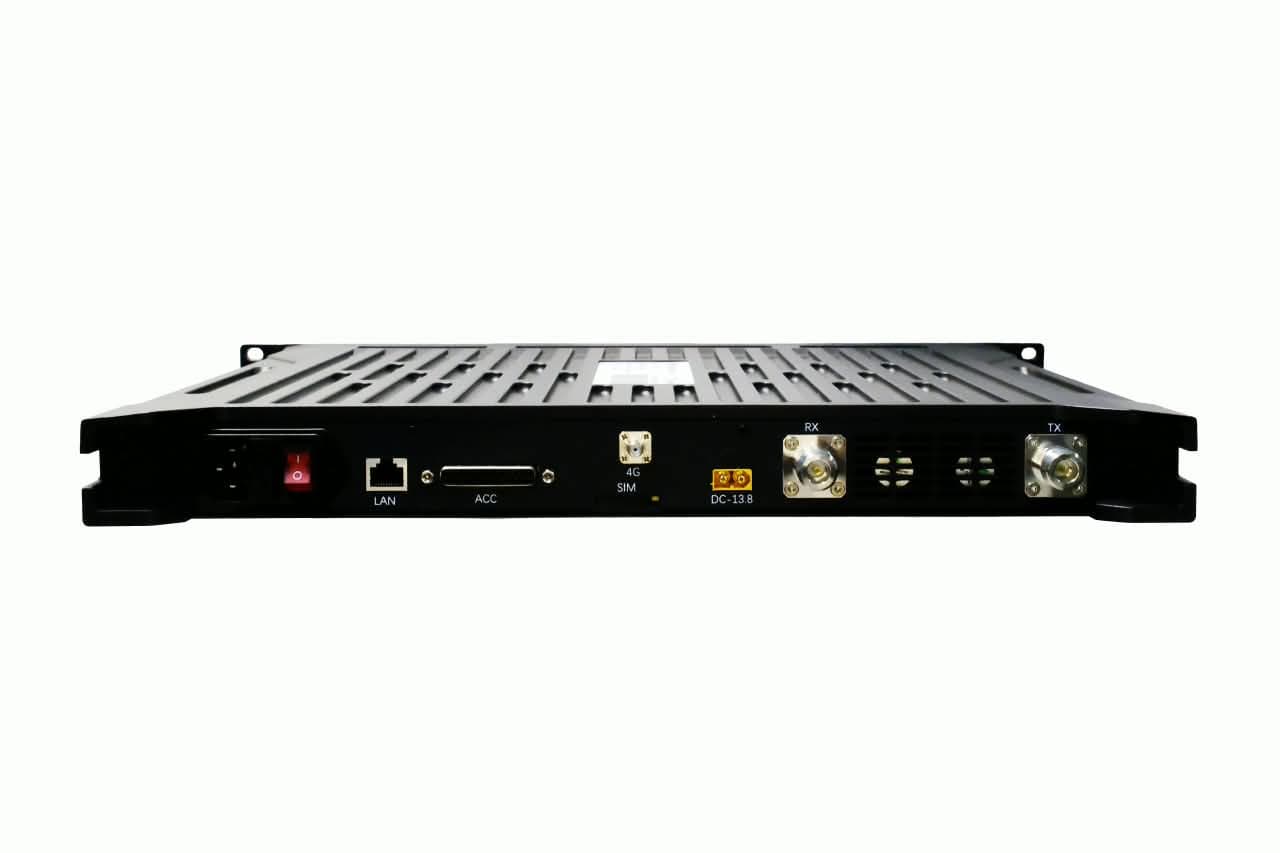

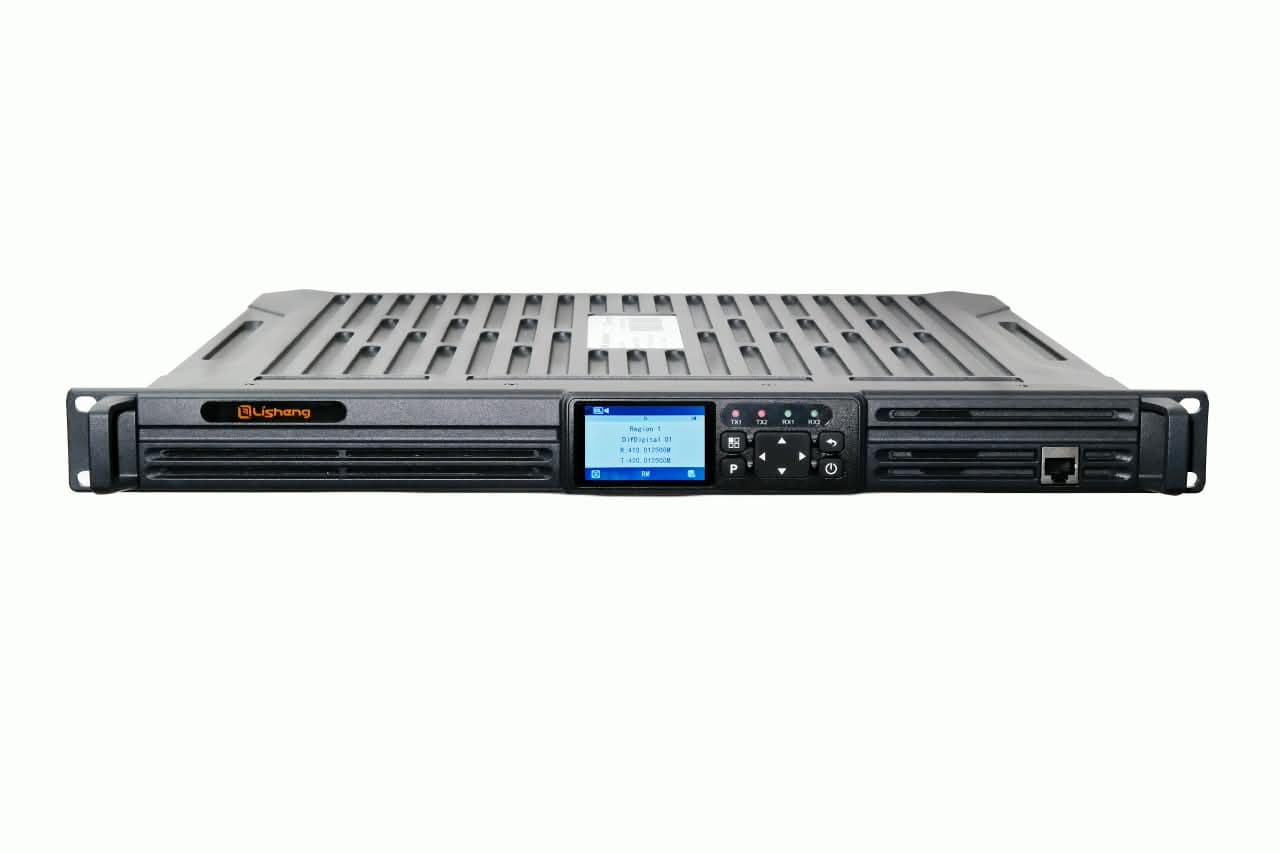

See it in detail.
Technical data

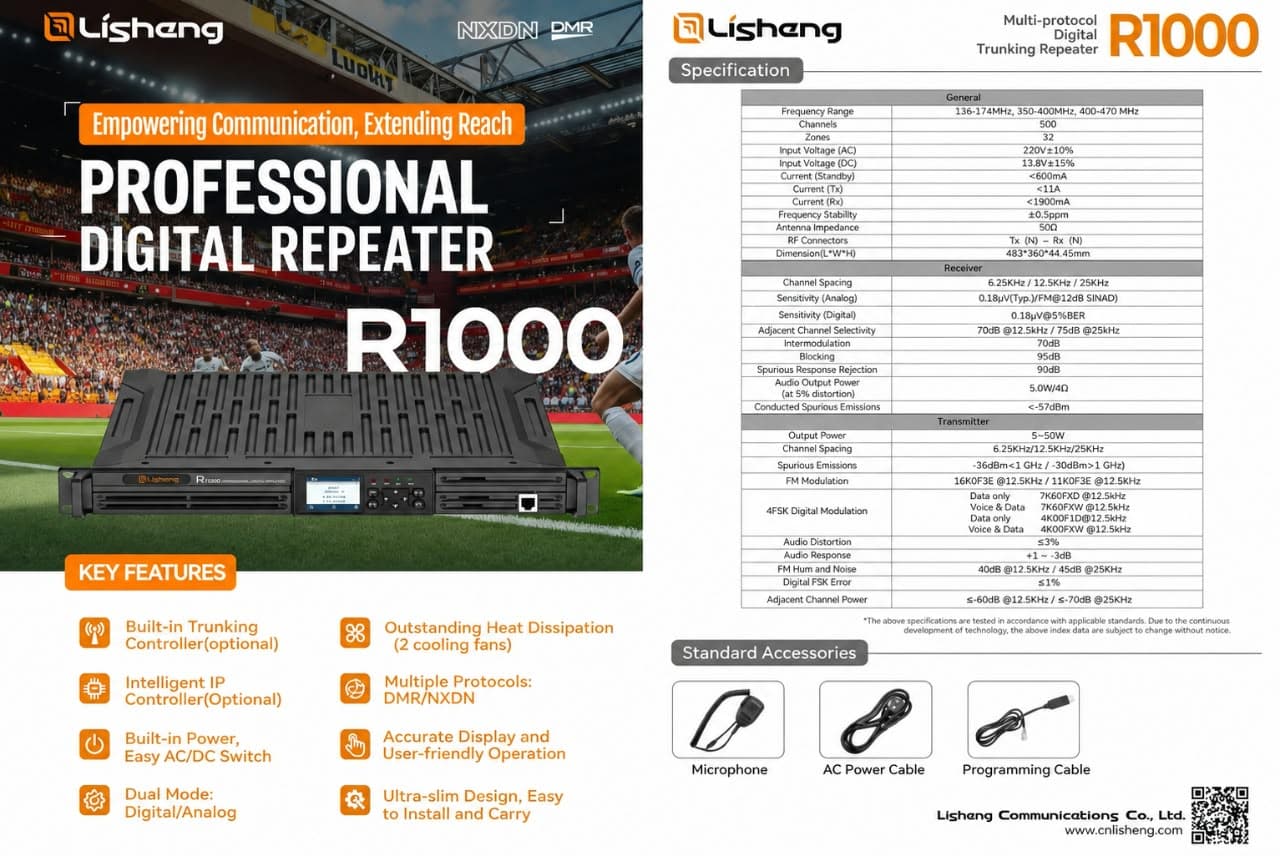

Specifications
General
- Frequency range
- 136–174MHz, 350–400MHz, 400–470MHz
- Channels
- 500
- Zones
- 32
- Input voltage (AC)
- 220V ±10%
- Input voltage (DC)
- 13.8V ±15%
- Standby current
- <600mA
- Transmit current
- <11A
- Receive current
- <1900mA
- Frequency stability
- ±0.5ppm
- Antenna impedance
- 50Ω
- RF connectors
- Tx: N; Rx: N
- Dimensions (L × W × H)
- 483 × 360 × 44.45mm
Receiver
- Channel spacing
- 6.25kHz / 12.5kHz / 25kHz
- Sensitivity (analogue)
- 0.18μV (typical, FM @ 12dB SINAD)
- Sensitivity (digital)
- 0.18μV @ 5% BER
- Adjacent channel selectivity
- 70dB @ 12.5kHz; 75dB @ 25kHz
- Intermodulation
- 70dB
- Blocking
- 95dB
- Spurious response rejection
- 90dB
- Audio output power
- 5.0W / 4Ω at 5% distortion
- Conducted spurious emissions
- < -57dBm
Transmitter
- Output power
- 5–50W
- Channel spacing
- 6.25kHz / 12.5kHz / 25kHz
- Spurious emissions
- -36dBm < 1GHz; -30dBm > 1GHz
- FM modulation
- 16K0F3E @ 12.5kHz; 11K0F3E @ 12.5kHz
- 4FSK digital modulation
- Data only: 7K60FXD @ 12.5kHz; voice and data: 7K60FXW @ 12.5kHz; data only: 4K00F1D @ 12.5kHz; voice and data: 4K00FXW @ 12.5kHz
- Audio distortion
- ≤3%
- Audio response
- +1 to -3dB
- FM hum and noise
- 40dB @ 12.5kHz; 45dB @ 25kHz
- Digital FSK error
- ≤1%
- Adjacent channel power
- ≤-60dB @ 12.5kHz; ≤-70dB @ 25kHz

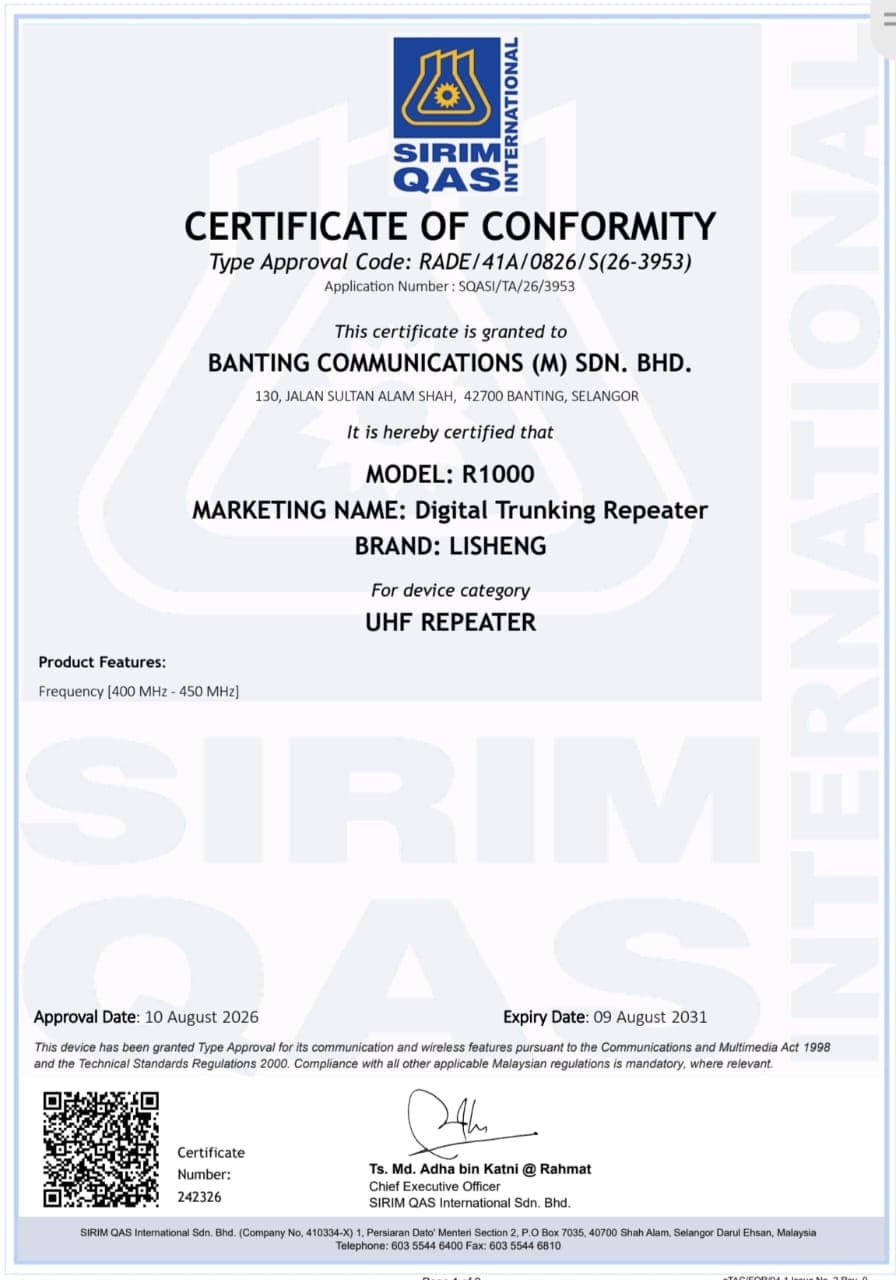

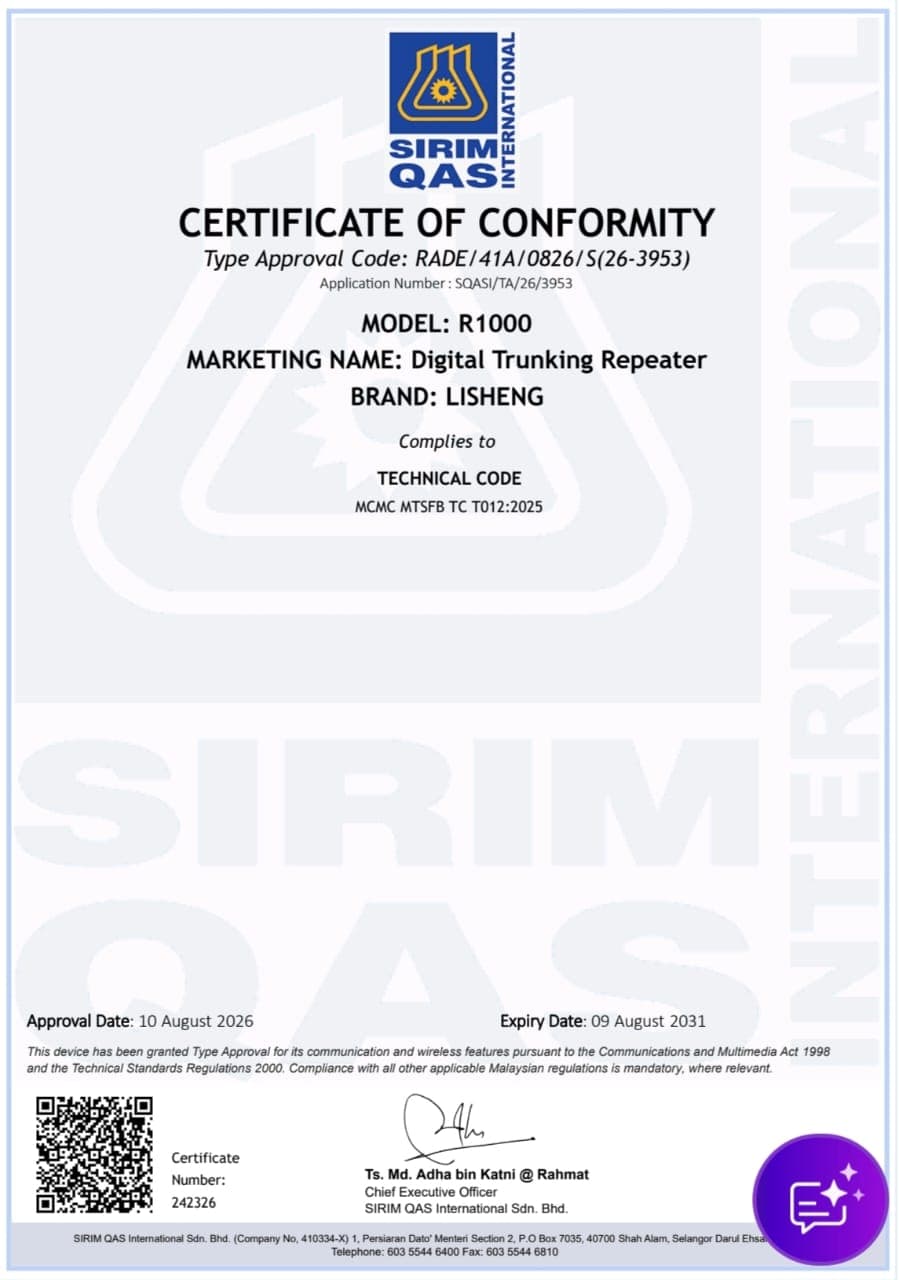

SIRIM approved.
Certification for the Malaysian market.
