V68 Iradio
Located in China two-way radio town--Quanzhou, Iradio Electronics Co., Ltd was established naturally and is a modern technology enterprise integrating R&D, manufacture and distribution in a rapid developing step.
Functions
Built into the radio.
- 0116 Programmable Side Keys
- 02CTCSS/DCS Code
- 03High/Low Power Switching
- 04Wide/Narrow Band Switching
- 05Scanning
- 06Monitor
- 07Battery Saving
- 08Low Battery Alerts
- 09Emergency Alarm
- 10Additional Encryption
- 11TOT
Features
Long press sidekey1 to turn in monitor function
In the same channel, long push the toggle switch 2 seconds into [CH-] to turn on the emergency alarm in two radios
Long push the toggle switch 2 seconds into [CH+] to lock the keypad
Short press the Monitor button can confirm that the channel is idle
Long press the Monitor button 2 seconds can open the anti-interference mode
When the key sound is on, there will be a prompt tone when pressing any button. When the key sound is off, no prompt tone appears
Turn on the radios [Roger Beep], after each call, the other radio can hear [di] prompt tone
If not use the radio for a longtime, please take off the battery
Please adjust the volume to middle when start the machine or switch to other channels to avoid damage to the hearing with big sound
Technical data
Specifications
General
- Frequency Range
- 400MHz-480MHz
- Channel Storage
- 16
- Voltage
- DC3.7V
- Antenna Impedance
- 50Ω
- Frequency Stability
- ±20ppm
- Working Temperature
- -10°C~+50°C
- Working Current
- TX Status: ≤1.3A | RX Status: ≤0.45A
- Battery Capacity
- 1100mAh
- Dimension
- 99×62×32mm (without antenna & belt clip)
- Weight
- 142g (without antenna & belt clip)
Transmitting
- TX Power
- 2W±0.3 (DC4.2V)
- Modulation Mode
- F3E
- Maximum Frequency Deviation
- ≤ 5KHz (Wide Band); ≤ 2.5KHz (Narrow Band)
- Spurious Power
- ≤7.5µW
- Adjacent Frequency Power
- ≤ -65dB (Wide Band); ≤ -60dB (Narrow Band)
Receiving
- RX Sensitivity (12dB SINAD)
- ≤ 0.2µV (Wide Band); ≤ 0.25µV (Narrow Band)
- Audio Power
- ≤ 1W (8ohm)
- Audio Distortion
- ≤ 5%
- Clustter Suppression
- ≥ 65dB

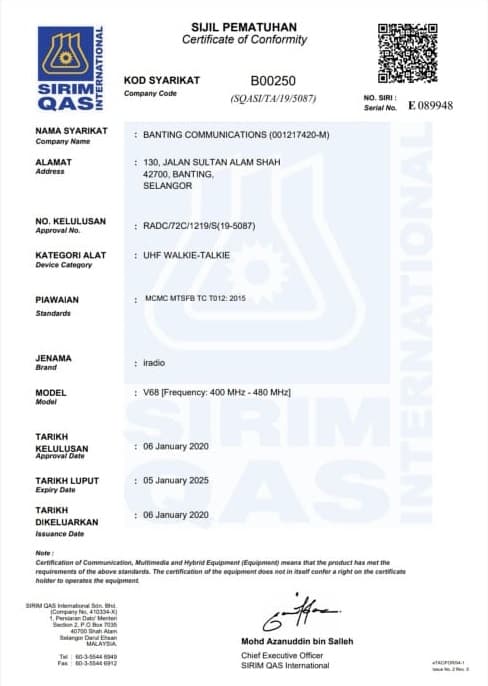

SIRIM approved.
Certification for the Malaysian market.
