CP-268 Iradio
CP-268 iRadio is the latest in RF communication, providing the best long-distance communication solutions in Malaysia.
Functions
Built into the radio.
- 01199 Channels Capacity
- 02CTCSS/DCS Code
- 03Scrambler
- 04Compandor
- 05Frequency Hopping
- 06Emergency Alarm
- 07Hands Free VOX
- 08Voice Report
- 09Private Call, Group Call, All Call
- 10Additional Encryption
Features
The CP268 is a professional handheld two-way radio with advanced digital features and exceptional audio quality.
With 199 channels capacity and CTCSS/DCS encoding, this radio provides reliable communication for various professional applications.
The built-in scrambler and encryption features ensure secure communications, while the hands-free VOX function allows for convenient operation.
Emergency alarm feature provides safety and security in critical situations.
Technical data
Specifications
General
- Frequency
- 400MHz-480MHz
- Channel Capacity
- 199 Channels
- Working Voltage
- DC 7.4V
- Antenna Impedance
- 50Ω
- Frequency Stability
- ±2.5ppm
- Working Temperature
- -20°C~+50°C
- Working Mode
- Simple or Semi-Duplex
- Working Current
- Transmitting: ≤1.45A | Receiving: ≤0.4A
- Dimension
- 154*59*37mm (not contain antenna & belt clip)
- Weight
- 218g (not contain antenna & belt clip)
Transmitting
- Modulation Mode
- F3E
- Maximum Deviation
- ≤ 5KHz (Wide Band); ≤ 2.5KHz (Narrow Band)
- Spurious Power
- ≤7.5µW
- Adjacent Channel Power
- ≤ -65dB (Wide Band); ≤ -60dB (Narrow Band)
Receiving
- RX Sensitivity (12dB SINAD)
- 0.2µV / 25Khz; 0.25µV / 12.5KHz
- Audio Power
- ≤ 1W
- Audio Distortion
- ≤ 10%
- Clustter Suppression
- ≥ 65dB

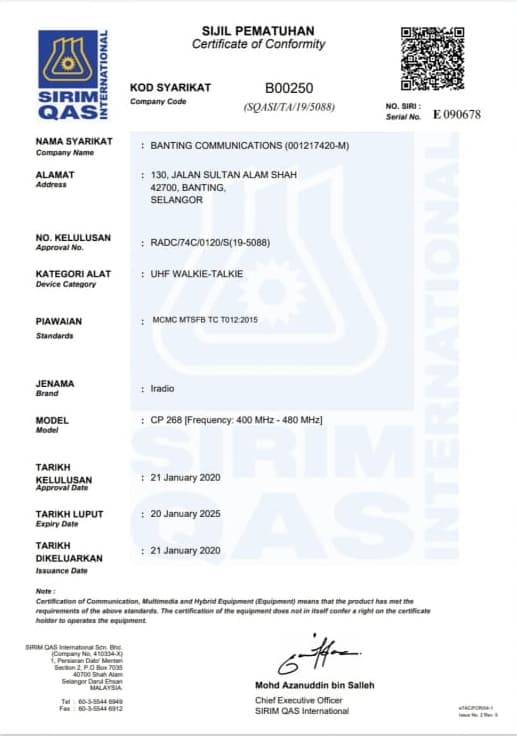

SIRIM approved.
Certification for the Malaysian market.
